Training a Waifu Diffusion Model on Small, Corrupted Data using Patch Diffusion and Rectified Flow

Introduction

Training generative models on small, imbalanced datasets is notoriously difficult—but it’s doable with the right tricks. I trained a 130M-parameter diffusion model on just 10,000 anime faces, 90% of them monochrome, that still generates coherent colorful images. This post covers the key techniques: patch diffusion, rectified flow, and CIELAB color space decoupling.

Weights & Code: HuggingFace · GitHub

Part 1: Diffusion & Flow Matching Primer

Diffusion Models: The Basics

Diffusion models learn to reverse a noise corruption process. You start with data $x_1$ and gradually add noise:

The model learns to predict the noise $\epsilon_\theta(x_t, t)$ at each step, allowing deterministic sampling through many denoising steps (often 50–1000).

Rectified Flow: Straight-Line Paths

Rectified flow simplifies this by learning a velocity field along a straight path from noise to data:

Instead of predicting noise, the model learns velocity: \(v_\theta(x_t, t)\)

Why it’s better: Straight paths require fewer steps (30–50 work well), and the linear time mapping is more natural for learning.

In practice, we predict the clean image $\hat{x}_1$ and derive velocity: \(v = \frac{\hat{x}_1 - x_t}{1 - t}\)

Part 2: Handling Imbalanced Data with CIELAB

The Dataset Problem

We use Anime-Face-Dataset-10k:

• 10,000 native 80×80 images
• 90% corrupted to monochrome
• 10% kept in color

Why CIELAB Works Better Than RGB

Rather than train in RGB, we convert to CIE L*a*b* color space:

Key insight: L*a*b* decouples structure (L) from color (a, b). For monochrome images, we zero out the chroma channels and mask gradients:

# For monochrome images
if idx not in color_indices:
    lab_tensor[1:, :, :] = 0.0     # Zero chroma
    mask[1:, :, :] = 0.0            # No gradient flow

This lets the model learn structural features from all 10k samples while learning color specifically from the 1k color samples without interference.

Part 3: Patch Diffusion for Data Augmentation

The Strategy

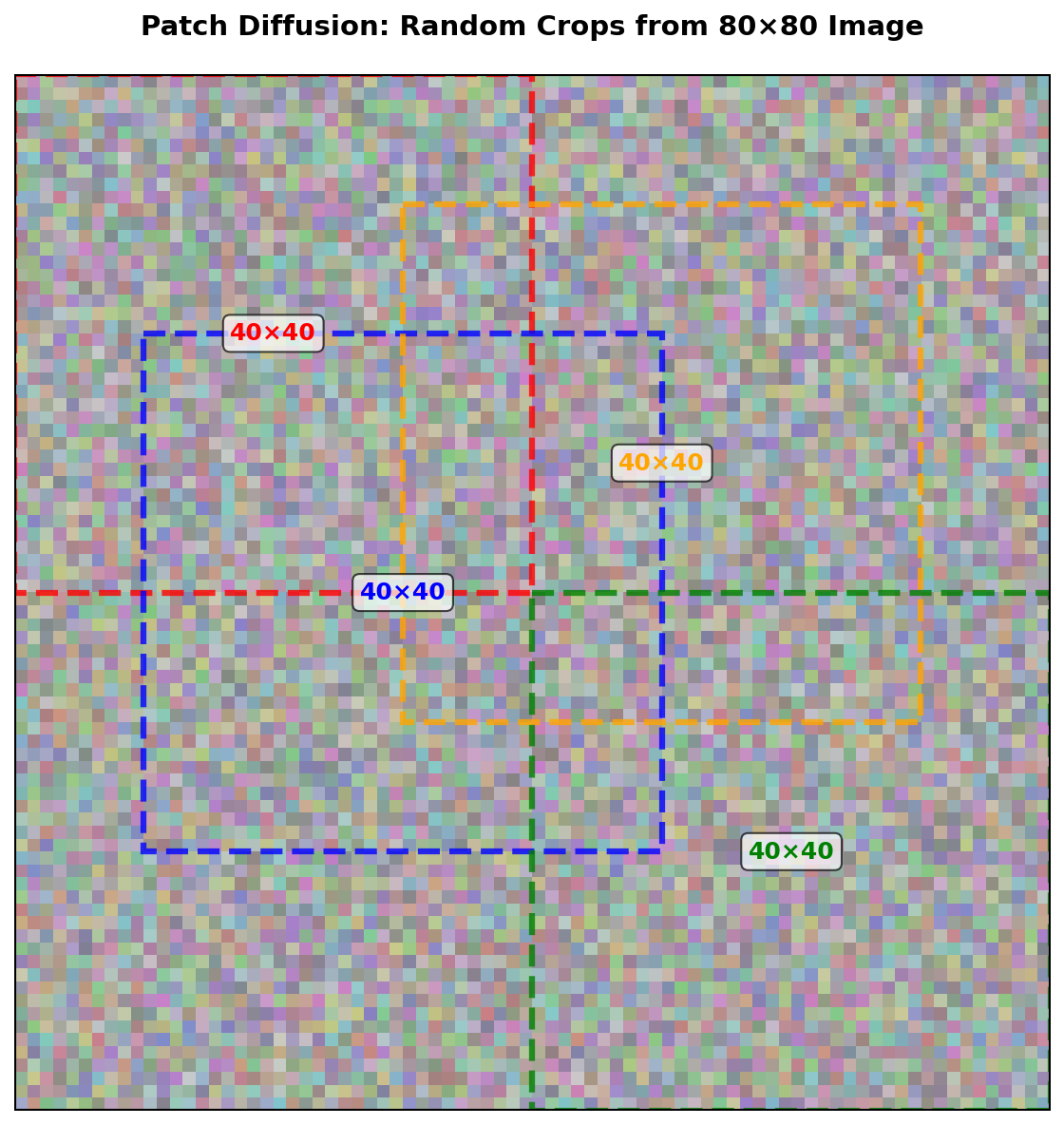

With only 10k samples, training on full 80×80 images is risky. We use random patch cropping during training:

patch_sizes = [40, 64, 80]  # Variable size patches
full_image_prob = 0.20

if random.random() < full_image_prob:
    x = x_full  # Full image
else:
    size = random.choice(patch_sizes)
    top = random.randint(0, (80 - size) // patch_size)
    left = random.randint(0, (80 - size) // patch_size)
    x = x_full[:, :, top*4:top*4+size, left*4:left*4+size]

A 40×40 patch can appear at up to 21 positions, effectively multiplying dataset size. We use Vision Rotary Embeddings to ensure spatial consistency across patches.

Part 4: Model Architecture

The JiT Transformer

We use a modern Diffusion Transformer (DiT-B) with ~130M parameters:

model = JiT(
    input_size=80,
    patch_size=4,           # 80×80 → 20×20 token grid
    hidden_size=768,
    depth=12,
    num_heads=12,
    in_context_len=0        # Unconditional
)

Key modern techniques:

• AdaLN: Timestep-modulated layer norm for expressive conditioning
• SwiGLU: Swish-gated feedforward layers (better than standard MLPs)
• RMSNorm: Stable layer normalization for mixed-precision training
• Vision RoPE: 2D rotary positional embeddings for patch-aware spatial reasoning
• Scaled Dot-Product Attention: Memory-efficient attention

The attention mechanism applies Vision RoPE with patch coordinates, ensuring smooth spatial transitions:

q = rope(q, top_idx=top_idx, left_idx=left_idx)
k = rope(k, top_idx=top_idx, left_idx=left_idx)

Part 5: Training Strategy

Loss Function & Gradient Masking

We train the velocity field with masked MSE loss. The model outputs x-pred (clean image prediction), which we convert to v-pred for both loss computation and sampling:

where $v_\theta = \hat{x}_1 - x_t$ is derived from the model’s x-prediction.

def masked_mse_loss(pred_x1, target_x1, mask):
    return (F.mse_loss(pred_x1, target_x1, reduction='none') * mask).mean()

# Training loop converts x-pred to v-pred:
v_pred = pred_x1 - x0
v_target = x1 - x0
loss = ((v_pred - v_target) ** 2 * mask).mean()

The mask prevents gradients from flowing through masked chroma channels in monochrome images.

Handling Data Imbalance: Oversampling

We oversample colored images by 3x using WeightedRandomSampler:

weights = [3.0 if i in color_indices else 1.0 for i in range(len(dataset))]
sampler = WeightedRandomSampler(weights, len(weights), replacement=True)

Training Details

• Epochs: 1280
• Batch size: 256 (accumulated from 4×64)
• Learning rate: 3e-4 (AdamW)
• Mixed precision: fp16 with gradient scaling
• Compilation: torch.compile for 1.5–2x speedup

Part 6: Results

Generation Sampling

Sampling uses Euler integration over 50 steps:

@torch.no_grad()
def generate(model, device, steps=50):
    xt = torch.randn((1, 3, 80, 80), device=device)
    y = torch.zeros(1, dtype=torch.long, device=device)

    for step in range(steps):
        t_val = step / steps
        t = torch.tensor(t_val, device=device)
        pred_x1 = model(xt, t, y, top_idx=0, left_idx=0)

        v = (pred_x1 - xt) / max(1.0 - t_val, 1e-2)
        xt = xt + v / steps

    return pred_x1

Generated Images

Despite training on 90% monochrome data, the model generates vibrant, coherent faces:

Avoiding Memorization: LPIPS Validation

We verify each generated image is novel by computing LPIPS distance to the nearest training sample. Typical values:

• Same image: 0.0
• Very similar: 0.05–0.15
• Somewhat distinct: 0.15–0.25
• Our generated samples: ≥ 0.25–0.3 ✓

The consistently higher LPIPS scores confirm the model generates novel faces rather than memorizing training data.

Generation Trajectory

The model smoothly transitions from noise to structure to detail:

Part 7: Key Takeaways

1. CIELAB decoupling is powerful: Separating structure from color lets you learn from partial/corrupted data gracefully.

2. Patch diffusion multiplies your data: Random cropping with spatial embeddings is a simple but effective augmentation.

3. Rectified flow is simpler & faster: Straight-line paths with velocity matching need far fewer steps than traditional DDPM.

4. Modern components matter: AdaLN, RMSNorm, Vision RoPE, and torch.compile all contribute to efficiency.

5. Oversampling works: Weighted sampling of rare color samples prevents the model from ignoring them.

Part 8: Code & Model

Model weights: ruwwww/waifu_diffusion
GitHub repository: ruwwww/waifu_diffusion
File: waifu_diffusion_1280_bs256.safetensors (130M params)

Quick inference:

from safetensors.torch import load_file
from skimage import color
import numpy as np

model = JiT(input_size=80, patch_size=4, in_channels=3,
            hidden_size=768, depth=12, num_heads=12, num_classes=1)
state_dict = load_file("waifu_diffusion_1280_bs256.safetensors")
model.load_state_dict(state_dict)
model.to(device).eval()

# Generate
xt = torch.randn((1, 3, 80, 80), device=device)
y = torch.zeros(1, dtype=torch.long, device=device)
for step in range(50):
    t = torch.tensor(step / 50, device=device)
    pred_x1 = model(xt, t, y, top_idx=0, left_idx=0)
    v = (pred_x1 - xt) / max(1.0 - step/50, 1e-2)
    xt = xt + v / 50

# Convert CIELAB → RGB
lab = torch.clamp(pred_x1[0], -1, 1).cpu().numpy()
L = (lab[0] + 1) * 50
a = lab[1] * 128
b = lab[2] * 128
rgb = color.lab2rgb(np.stack([L, a, b], axis=-1))

Full training code is in the repository.

References

• Rectified Flow: Flow Matching for Generative Modeling
• DiT: Scalable Diffusion Models with Transformers
• Patch Diffusion: Faster and More Data-Efficient Training of Diffusion Models
